Ligand-receptor interaction inference

In this tutorial, we demonstrate the cell cell interaction based on ligand-receptor products conditioned on spatial proximity between clusters. This is done in the following three steps.

  1. Find spatially adjacent clusters(celltypes);

  2. Given two celltypes, find space-specific ligand-receptor pairs.

  3. (Optional),Loop executes multiple two-cell type interactions.

[1]:
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
import spateo as st
2024-02-01 10:26:37.904158: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT

Load data

We will be using a axolotl dataset from [Wei et al., 2022] (https://doi.org/10.1126/science.abp9444).

Here, we can get data directly from the functionst.sample.axolotl or link:

  1. axolotl_2DPI: https://www.dropbox.com/s/7w2jxf41xazrqxo/axolotl_2DPI.h5ad?dl=1

  2. axolotl_2DPI_right: https://www.dropbox.com/s/pm5vvqcd4leahsb/axolotl_2DPI_right.h5ad?dl=1

[2]:
adata = st.sample_data.axolotl(filename='axolotl_2DPI.h5ad')
adata
|-----> Downloading data to ./data/axolotl_2DPI.h5ad
[2]:
AnnData object with n_obs × n_vars = 7668 × 27324
    obs: 'CellID', 'spatial_leiden_e30_s8', 'Batch', 'cell_id', 'seurat_clusters', 'inj_uninj', 'D_V', 'inj_M_L', 'Annotation'
    var: 'Axolotl_ID', 'hs_gene'
    uns: 'Annotation_colors', '__type', 'color_key'
    obsm: 'X_spatial', 'spatial'
    layers: 'counts', 'log1p'
    obsp: 'connectivities', 'distances', 'spatial_connectivities', 'spatial_distances'
[3]:

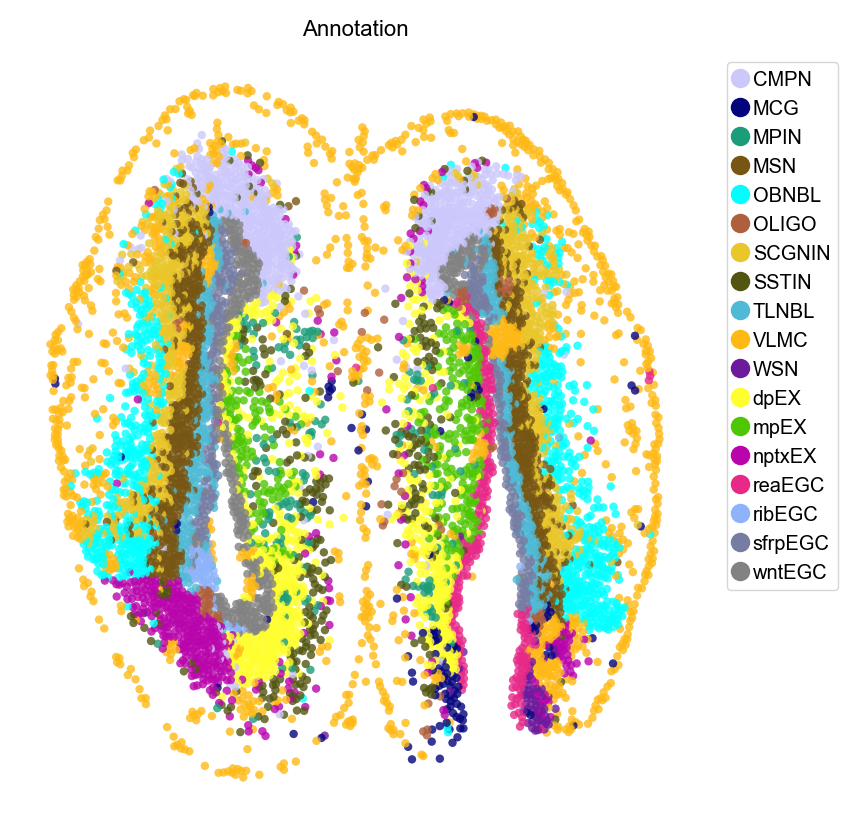

st.pl.space(adata,
            color=['Annotation'],
            pointsize=0.2,
            color_key=adata.uns['color_key'],
            show_legend='upper left',
            figsize=(5, 5))
../../../_images/tutorials_notebooks_6_cci_1_cell-cell_communication_LR_coexpression_analysis_4_0.png

Find spatially adjacent celltypes

First, we calculate the weighted spatial graph between celltypes, which the nearest neighbor of a cell are based on the fixed-neighbor or fixed-radius methods. The spatial graphs and spatial distances are saves to adata.obsp['spatial_distances'],adata.obsp['spatial_weights'],adata.obsp['spatial_connectivities'] ,adata.uns['spatial_neighbors'].

[4]:
_, adata = st.tl.neighbors(
    adata,
    basis='spatial',
    spatial_key='spatial',
    n_neighbors=10
)
|-----> <insert> spatial_distances to obsp in AnnData Object.
|-----> <insert> spatial_connectivities to obsp in AnnData Object.
|-----> <insert> spatial_neighbors to uns in AnnData Object.
|-----> <insert> spatial_neighbors.indices to uns in AnnData Object.
|-----> <insert> spatial_neighbors.params to uns in AnnData Object.
[5]:

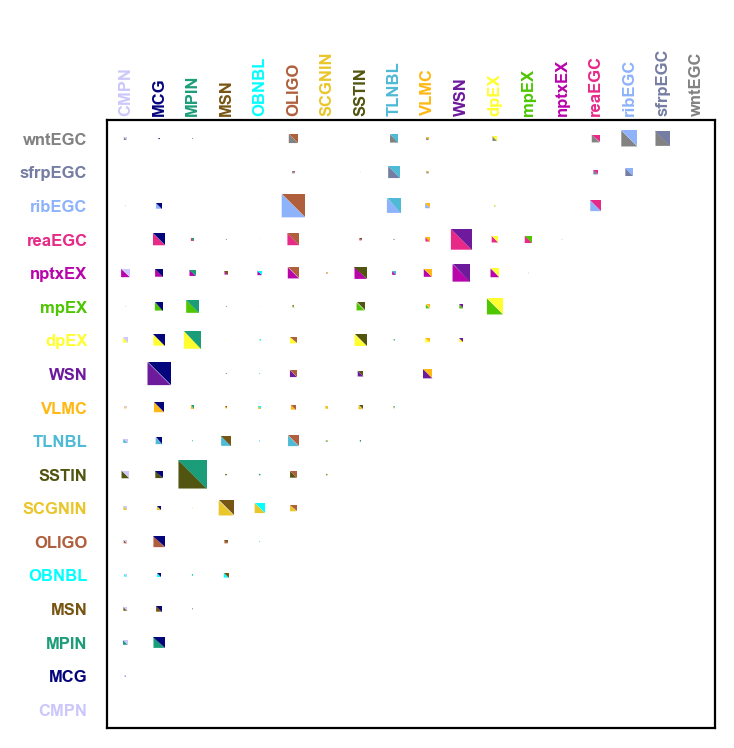

st.pl.plot_connections(
    adata,
    cat_key='Annotation',
    save_show_or_return='show',
    title_str=" ",
    title_fontsize=6,
    label_fontsize=6,
    colormap=adata.uns['color_key'],
    figsize=(4, 4),
)
|-----> Filtering out cell types with fewer than 30 cells...
|-----> <insert> spatial_distances to obsp in AnnData Object.
|-----> <insert> spatial_connectivities to obsp in AnnData Object.
|-----> <insert> spatial_neighbors to uns in AnnData Object.
|-----> <insert> spatial_neighbors.indices to uns in AnnData Object.
|-----> <insert> spatial_neighbors.params to uns in AnnData Object.
|----->
--- 18 labels, 7668 samples ---
initalized (19,) index ptr: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
initalized (7668,) indices: [0 0 0 ... 0 0 0]
initalized (7668,) data: [1 1 1 ... 1 1 1]

|-----> Deep copying AnnData object and working on the new copy. Original AnnData object will not be modified.
|-----> Matrix multiplying labels x weights x labels-transpose, shape (18, 7668) x (7668, 7668) x (7668, 18).
../../../_images/tutorials_notebooks_6_cci_1_cell-cell_communication_LR_coexpression_analysis_7_1.png

Given two celltypes, find space-specific ligand-receptor pairs.

Based on the result above, here we take the reaEGC(sender celltype) and WSN(receiver celltype) as an example.

[6]:
adata = st.sample_data.axolotl(filename='axolotl_2DPI_right.h5ad')
adata
|-----> Downloading data to ./data/axolotl_2DPI_right.h5ad
[6]:
AnnData object with n_obs × n_vars = 3625 × 27324
    obs: 'CellID', 'spatial_leiden_e30_s8', 'Batch', 'cell_id', 'seurat_clusters', 'inj_uninj', 'D_V', 'inj_M_L', 'Annotation'
    var: 'Axolotl_ID', 'hs_gene'
    uns: 'Annotation_colors', '__type', 'color_key'
    obsm: 'X_pca', 'X_spatial', 'spatial'
    varm: 'PCs'
    layers: 'counts'
    obsp: 'connectivities', 'distances', 'spatial_connectivities', 'spatial_distances'
[7]:
sender_ct = 'reaEGC'
receptor_ct = 'WSN'

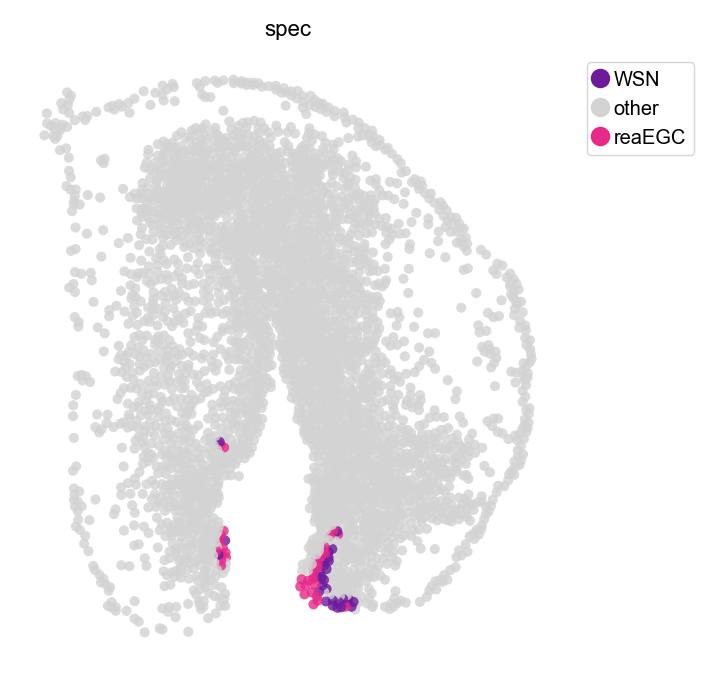

Plot cell type pair

[8]:
st.tl.prepare_cci_cellpair_adata(adata, sender_group=sender_ct,
                                 receiver_group=receptor_ct, group='Annotation', all_cell_pair=True)
# plot all cell pair
st.pl.space(adata,
            color=['spec'],
            pointsize=0.2,
            color_key={'other': '#D3D3D3', sender_ct: adata.uns['color_key']
                       [sender_ct], receptor_ct: adata.uns['color_key'][receptor_ct]},
            show_legend='upper left',
            figsize=(4, 4),
            save_show_or_return='show',
            #save_kwargs={"prefix": "./figures/left_2DPI_uninjury_cci_" + sender_ct + "_" + receptor_ct + "_all_cell_pair"}
            )
../../../_images/tutorials_notebooks_6_cci_1_cell-cell_communication_LR_coexpression_analysis_12_0.png

Spatial ligand-receptor analysis

[9]:
_, adata = st.tl.neighbors(
    adata,
    basis='spatial',
    spatial_key='spatial',
    n_neighbors=10
)
|-----> <insert> spatial_distances to obsp in AnnData Object.
|-----> <insert> spatial_connectivities to obsp in AnnData Object.
|-----> <insert> spatial_neighbors to uns in AnnData Object.
|-----> <insert> spatial_neighbors.indices to uns in AnnData Object.
|-----> <insert> spatial_neighbors.params to uns in AnnData Object.
[10]:
# Replace with your database path:
db_dir = "/mnt/c/users/danie/Desktop/Github/spateo-release/spateo/tools/database/"
[11]:
res = st.tl.find_cci_two_group(adata,
                               path=db_dir,
                               species='axolotl',
                               group='Annotation',
                               sender_group=sender_ct,
                               receiver_group=receptor_ct,
                               filter_lr='outer',
                               min_pairs=0,
                               min_pairs_ratio=0,
                               top=20,)
|-----> 20 ligands for cell type reaEGC_prox with highest fraction of prevalence: ['AMEX60DD001392', 'AMEX60DD006146', 'AMEX60DD034565', 'AMEX60DD049502', 'AMEX60DD038105', 'AMEX60DD028699', 'AMEX60DD006363', 'AMEX60DD055544', 'AMEX60DD006229', 'AMEX60DD029944', 'AMEX60DD040253', 'AMEX60DD008951', 'AMEX60DD042911', 'AMEX60DD024888', 'AMEX60DD004095', 'AMEX60DD013396', 'AMEX60DD011644', 'AMEX60DD050822', 'AMEX60DD025240', 'AMEX60DD035775']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type WSN_prox with highest fraction of prevalence: ['AMEX60DD027855', 'AMEX60DD051542', 'AMEX60DD033799', 'AMEX60DD049635', 'AMEX60DD014152', 'AMEX60DD029894', 'AMEX60DD051881', 'AMEX60DD055551', 'AMEX60DD055467', 'AMEX60DD055675', 'AMEX60DD055776', 'AMEX60DD033101', 'AMEX60DD009754', 'AMEX60DD036540', 'AMEX60DDU001005617', 'AMEX60DD018191', 'AMEX60DD029326', 'AMEX60DD008017', 'AMEX60DD052078', 'AMEX60DD029929']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:06<00:00, 157.93it/s]

Plot neighbors with the given cell type designations

[12]:
st.tl.prepare_cci_cellpair_adata(
    adata, sender_group=sender_ct, receiver_group=receptor_ct, cci_dict=res, all_cell_pair=False)
# plot
st.pl.space(adata,
            color=['spec'],
            pointsize=0.2,
            color_key={'other': '#D3D3D3', sender_ct: adata.uns['color_key']
                       [sender_ct], receptor_ct: adata.uns['color_key'][receptor_ct]},
            show_legend='upper left',
            figsize=(4, 4),
            save_show_or_return='return',
            #save_kwargs={"prefix": "./figures/left_2DPI_uninjury_cci_" + sender_ct + "_" + receptor_ct + "_cell_pair"}
            )
[12]:
(None, [<AxesSubplot:title={'center':'spec'}>])
../../../_images/tutorials_notebooks_6_cci_1_cell-cell_communication_LR_coexpression_analysis_18_1.png

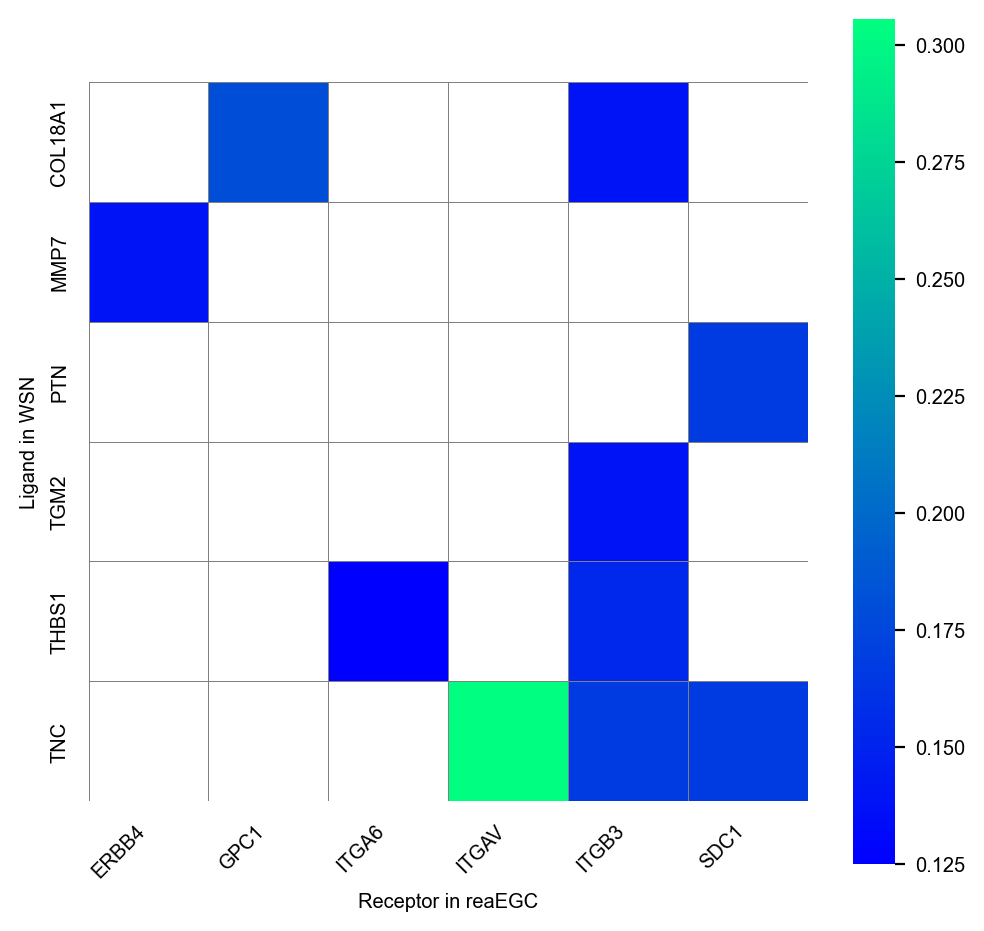

Plot heatmap : significant ligand-receptor pairs

From st.tl.find_cci_two_group, we can get significant LR pairs specific to sender and receiver celltypes, res['lr_pair'], with columns are lr_co_exp_num, the number of cell-pairs co-expressed liagnd(expressed in sender cell type) and receptor(expressed in receiver cell type). lr_co_exp_ratio,Co-expressed cell-pairs account for all the paired cells.lr_co_exp_ratio_pvalue,p value of the LR pairs from permutation test, lr_co_exp_ratio_qvalue,FDR value. Here we use heatmap to show the LR pairs.

[13]:
df = res['lr_pair']
df = df.loc[df['lr_co_exp_num'] > 0].sort_values(
    'lr_co_exp_ratio', ascending=False)[0:10]
[14]:
%matplotlib inline
data1 = df.iloc[:, [2, 3, 7]]
test = data1.pivot(index="human_ligand", columns="human_receptor",
                   values="lr_co_exp_ratio").fillna(0)
fig = plt.figure()
fig.set_size_inches(5, 5)
x_label = list(test.columns.tolist())
y_label = list(test.index)
ax = sns.heatmap(test,
                 cmap="winter",
                 square=True,
                 yticklabels=y_label,
                 linecolor='grey',
                 linewidths=0.3,
                 annot_kws={'size': 10, 'weight': 'bold', },
                 xticklabels=x_label,
                 mask=(test < 0.01))
plt.gcf().subplots_adjust(bottom=0.3)
plt.xlabel("Receptor in reaEGC")
plt.ylabel("Ligand in WSN")
ax.set_xticklabels(x_label, rotation=45, ha="right")
ax.xaxis.set_ticks_position('none')
ax.yaxis.set_ticks_position('none')
plt.tight_layout()
#plt.savefig("./figures/2DPI_sub_cci_WSN_ReaEGC_heatmap.pdf", transparent=True)
../../../_images/tutorials_notebooks_6_cci_1_cell-cell_communication_LR_coexpression_analysis_22_0.png

(Optional) Loop executes multiple two-cell type interactions.

In the case of multiple cell types interacting in a region, the following code can be run. Here we choose the reigon of injury of 2DPI datasets of axolotl. In this microenvironment, these types of cells(reaEGC,MCG,WSN, nptxEX) may interact and cause regeneration to occur.

[15]:
a = ['reaEGC', 'MCG', 'WSN', 'nptxEX']

First, construct the celltype pairs in this reigion.

[16]:
df = pd.DataFrame({
    "celltype_sender": np.repeat(a, len(a)),
    "celltype_receiver": list(a)*len(a),
})
df = df[df['celltype_sender'] != df['celltype_receiver']]
df["celltype_pair"] = df["celltype_sender"].str.cat(
    df["celltype_receiver"], sep="-")
df = df.reset_index(drop=True)
df
[16]:
celltype_sender celltype_receiver celltype_pair
0 reaEGC MCG reaEGC-MCG
1 reaEGC WSN reaEGC-WSN
2 reaEGC nptxEX reaEGC-nptxEX
3 MCG reaEGC MCG-reaEGC
4 MCG WSN MCG-WSN
5 MCG nptxEX MCG-nptxEX
6 WSN reaEGC WSN-reaEGC
7 WSN MCG WSN-MCG
8 WSN nptxEX WSN-nptxEX
9 nptxEX reaEGC nptxEX-reaEGC
10 nptxEX MCG nptxEX-MCG
11 nptxEX WSN nptxEX-WSN

Second, calculate the cell pairs and ligand-receptor pairs which interact significantly.

[17]:
res = {}
# For pairs with no L:R interactions:
dropped = []
for idx, i in enumerate(df['celltype_pair']):
    s, r = i.split(sep='-')
    result = st.tl.find_cci_two_group(adata,
                                      path=db_dir,
                                      species='axolotl',
                                      group='Annotation',
                                      sender_group=s,
                                      receiver_group=r,
                                      filter_lr='outer',
                                      min_pairs=0,
                                      min_pairs_ratio=0,
                                      top=20,)
    if result is not None:
        res[i] = result
    else:
        dropped.append(idx)

result = pd.DataFrame(columns=res[df['celltype_pair'][1]]['lr_pair'].columns)
for l in df.index:
    if l not in dropped:
        res[df['celltype_pair'][l]]['lr_pair'] = res[df['celltype_pair'][l]
                                                     ]['lr_pair'].sort_values('lr_co_exp_ratio', ascending=False)[0:3]
        result = pd.concat([result, res[df['celltype_pair'][l]]
                           ['lr_pair']], axis=0, join='outer')

df_result = result.loc[result['lr_co_exp_num'] > 5]
df_result.drop_duplicates(
    subset=['lr_pair', 'sr_pair', ], keep='first', inplace=True)
|-----> 20 ligands for cell type reaEGC_prox with highest fraction of prevalence: ['AMEX60DD005285', 'AMEX60DD001694', 'AMEX60DD022450', 'AMEX60DD034565', 'AMEX60DD004095', 'AMEX60DD015004', 'AMEX60DD028699', 'AMEX60DD018261', 'AMEX60DD013396', 'AMEX60DD049502', 'AMEX60DD038105', 'AMEX60DD049490', 'AMEX60DD008914', 'AMEX60DD001392', 'AMEX60DD052146', 'AMEX60DD055544', 'AMEX60DD006010', 'AMEX60DD024888', 'AMEX60DD002776', 'AMEX60DD050615']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type MCG_prox with highest fraction of prevalence: ['AMEX60DDU001005665', 'AMEX60DD041858', 'AMEX60DD001963', 'AMEX60DD051542', 'AMEX60DD031598', 'AMEX60DD014152', 'AMEX60DD045012', 'AMEX60DD047992', 'AMEX60DD046037', 'AMEX60DD032718', 'AMEX60DD001912', 'AMEX60DD045536', 'AMEX60DD054777', 'AMEX60DD055178', 'AMEX60DD037922', 'AMEX60DD055954', 'AMEX60DD033101', 'AMEX60DD018338', 'AMEX60DD051010', 'AMEX60DD009754']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:05<00:00, 167.01it/s]
|-----> 20 ligands for cell type reaEGC_prox with highest fraction of prevalence: ['AMEX60DD001392', 'AMEX60DD006146', 'AMEX60DD034565', 'AMEX60DD049502', 'AMEX60DD038105', 'AMEX60DD028699', 'AMEX60DD006363', 'AMEX60DD055544', 'AMEX60DD006229', 'AMEX60DD029944', 'AMEX60DD040253', 'AMEX60DD008951', 'AMEX60DD042911', 'AMEX60DD024888', 'AMEX60DD004095', 'AMEX60DD013396', 'AMEX60DD011644', 'AMEX60DD050822', 'AMEX60DD025240', 'AMEX60DD035775']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type WSN_prox with highest fraction of prevalence: ['AMEX60DD027855', 'AMEX60DD051542', 'AMEX60DD033799', 'AMEX60DD049635', 'AMEX60DD014152', 'AMEX60DD029894', 'AMEX60DD051881', 'AMEX60DD055551', 'AMEX60DD055467', 'AMEX60DD055675', 'AMEX60DD055776', 'AMEX60DD033101', 'AMEX60DD009754', 'AMEX60DD036540', 'AMEX60DDU001005617', 'AMEX60DD018191', 'AMEX60DD029326', 'AMEX60DD008017', 'AMEX60DD052078', 'AMEX60DD029929']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:06<00:00, 159.45it/s]
|-----> No cells found in the category reaEGC_prox. Returning None.
|-----> 20 ligands for cell type MCG_prox with highest fraction of prevalence: ['AMEX60DD005285', 'AMEX60DD054671', 'AMEX60DD054218', 'AMEX60DD013396', 'AMEX60DD052549', 'AMEX60DD049259', 'AMEX60DD056132', 'AMEX60DD003767', 'AMEX60DD034707', 'AMEX60DD049502', 'AMEX60DD038339', 'AMEX60DD052070', 'AMEX60DD001392', 'AMEX60DD033981', 'AMEX60DD027633', 'AMEX60DD028699', 'AMEX60DD006619', 'AMEX60DD038300', 'AMEX60DD051636', 'AMEX60DD019011']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type reaEGC_prox with highest fraction of prevalence: ['AMEX60DD053573', 'AMEX60DD009877', 'AMEX60DD034378', 'AMEX60DD011957', 'AMEX60DD002586', 'AMEX60DD022211', 'AMEX60DD024484', 'AMEX60DD014152', 'AMEX60DD022702', 'AMEX60DD038156', 'AMEX60DD055675', 'AMEX60DD045536', 'AMEX60DD030160', 'AMEX60DD055776', 'AMEX60DD004560', 'AMEX60DD042070', 'AMEX60DD008017', 'AMEX60DD021741', 'AMEX60DD052063', 'AMEX60DD029929']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:06<00:00, 162.60it/s]
|-----> 20 ligands for cell type MCG_prox with highest fraction of prevalence: ['AMEX60DD015004', 'AMEX60DD005285', 'AMEX60DD013396', 'AMEX60DD052549', 'AMEX60DD028514', 'AMEX60DD001946', 'AMEX60DD054671', 'AMEX60DD033437', 'AMEX60DD038300', 'AMEX60DD054218', 'AMEX60DD018576', 'AMEX60DD049259', 'AMEX60DD006619', 'AMEX60DD003767', 'AMEX60DD006711', 'AMEX60DD027633', 'AMEX60DD026682', 'AMEX60DD028699', 'AMEX60DD034707', 'AMEX60DD009063']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type WSN_prox with highest fraction of prevalence: ['AMEX60DD043057', 'AMEX60DD008551', 'AMEX60DD020537', 'AMEX60DD018528', 'AMEX60DD038203', 'AMEX60DD046905', 'AMEX60DD055153', 'AMEX60DD029894', 'AMEX60DD045012', 'AMEX60DD055467', 'AMEX60DD045536', 'AMEX60DD023546', 'AMEX60DD033101', 'AMEX60DD042067', 'AMEX60DD009754', 'AMEX60DDU001005617', 'AMEX60DD018191', 'AMEX60DD009964', 'AMEX60DD029326', 'AMEX60DD019156']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:05<00:00, 168.92it/s]
|-----> 20 ligands for cell type MCG_prox with highest fraction of prevalence: ['AMEX60DD054218', 'AMEX60DD028514', 'AMEX60DD054221', 'AMEX60DD052549', 'AMEX60DD018576', 'AMEX60DD049488', 'AMEX60DD013396', 'AMEX60DD006711', 'AMEX60DD009962', 'AMEX60DD027336', 'AMEX60DD042075', 'AMEX60DD009229', 'AMEX60DD051109', 'AMEX60DD045792', 'AMEX60DDU001007321', 'AMEX60DD028699', 'AMEX60DD049338', 'AMEX60DD052070', 'AMEX60DD038300', 'AMEX60DD048288']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type nptxEX_prox with highest fraction of prevalence: ['AMEX60DD043057', 'AMEX60DD034378', 'AMEX60DD030013', 'AMEX60DD051542', 'AMEX60DD033799', 'AMEX60DDU001033895', 'AMEX60DD009947', 'AMEX60DD019887', 'AMEX60DD033778', 'AMEX60DD040513', 'AMEX60DD016175', 'AMEX60DD043107', 'AMEX60DD015830', 'AMEX60DD051903', 'AMEX60DD002665', 'AMEX60DD030144', 'AMEX60DD045542', 'AMEX60DD033101', 'AMEX60DD018338', 'AMEX60DD036540']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:05<00:00, 176.14it/s]
|-----> 20 ligands for cell type WSN_prox with highest fraction of prevalence: ['AMEX60DD018576', 'AMEX60DD049490', 'AMEX60DD054671', 'AMEX60DD015004', 'AMEX60DD049502', 'AMEX60DD022816', 'AMEX60DD026682', 'AMEX60DD054218', 'AMEX60DD052549', 'AMEX60DD038105', 'AMEX60DD042075', 'AMEX60DD056311', 'AMEX60DD014882', 'AMEX60DD037141', 'AMEX60DD056132', 'AMEX60DDU001002333', 'AMEX60DD050615', 'AMEX60DD024179', 'AMEX60DD028699', 'AMEX60DD002881']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type reaEGC_prox with highest fraction of prevalence: ['AMEX60DD027855', 'AMEX60DD015696', 'AMEX60DD018528', 'AMEX60DD034378', 'AMEX60DD011957', 'AMEX60DD011408', 'AMEX60DD024484', 'AMEX60DDU001033895', 'AMEX60DD014152', 'AMEX60DD051881', 'AMEX60DD046037', 'AMEX60DD038156', 'AMEX60DD055675', 'AMEX60DD031636', 'AMEX60DD042348', 'AMEX60DD019369', 'AMEX60DD021356', 'AMEX60DD054983', 'AMEX60DD009964', 'AMEX60DD029929']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:06<00:00, 155.06it/s]
|-----> 20 ligands for cell type WSN_prox with highest fraction of prevalence: ['AMEX60DD011161', 'AMEX60DD006587', 'AMEX60DD017034', 'AMEX60DD047475', 'AMEX60DD054671', 'AMEX60DD054218', 'AMEX60DD052549', 'AMEX60DD056311', 'AMEX60DD006711', 'AMEX60DD003392', 'AMEX60DD050615', 'AMEX60DD018576', 'AMEX60DD036126', 'AMEX60DD019011', 'AMEX60DD042075', 'AMEX60DD049490', 'AMEX60DD037141', 'AMEX60DD047873', 'AMEX60DD003207', 'AMEX60DD034687']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type MCG_prox with highest fraction of prevalence: ['AMEX60DD044042', 'AMEX60DDU001005665', 'AMEX60DD001963', 'AMEX60DD009334', 'AMEX60DD029894', 'AMEX60DD037920', 'AMEX60DD046037', 'AMEX60DD048520', 'AMEX60DD037922', 'AMEX60DD055359', 'AMEX60DD042224', 'AMEX60DD042223', 'AMEX60DD033101', 'AMEX60DD025098', 'AMEX60DD018338', 'AMEX60DDU001005617', 'AMEX60DD005288', 'AMEX60DD027192', 'AMEX60DD029326', 'AMEX60DD009754']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:06<00:00, 163.08it/s]
|-----> 20 ligands for cell type WSN_prox with highest fraction of prevalence: ['AMEX60DD006587', 'AMEX60DD018576', 'AMEX60DD050451', 'AMEX60DD038105', 'AMEX60DD049490', 'AMEX60DD056311', 'AMEX60DD005869', 'AMEX60DD033480', 'AMEX60DD056132', 'AMEX60DD015004', 'AMEX60DD049502', 'AMEX60DD036126', 'AMEX60DD042075', 'AMEX60DD051109', 'AMEX60DD014882', 'AMEX60DD002185', 'AMEX60DD037141', 'AMEX60DD031350', 'AMEX60DD006711', 'AMEX60DD050615']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type nptxEX_prox with highest fraction of prevalence: ['AMEX60DD033647', 'AMEX60DDU001005665', 'AMEX60DD011408', 'AMEX60DD009334', 'AMEX60DD051542', 'AMEX60DDU001033895', 'AMEX60DD022256', 'AMEX60DD009634', 'AMEX60DD016175', 'AMEX60DD054777', 'AMEX60DD030160', 'AMEX60DD015830', 'AMEX60DD030144', 'AMEX60DD030734', 'AMEX60DD002309', 'AMEX60DD045542', 'AMEX60DD033101', 'AMEX60DD008017', 'AMEX60DD052078', 'AMEX60DD029929']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:06<00:00, 151.44it/s]
|-----> No cells found in the category nptxEX_prox. Returning None.
|-----> 20 ligands for cell type nptxEX_prox with highest fraction of prevalence: ['AMEX60DD047475', 'AMEX60DD007305', 'AMEX60DD056311', 'AMEX60DD050615', 'AMEX60DDU001002333', 'AMEX60DD042075', 'AMEX60DD024179', 'AMEX60DD045327', 'AMEX60DD038300', 'AMEX60DD003212', 'AMEX60DD039130', 'AMEX60DD002185', 'AMEX60DD031350', 'AMEX60DDU001005418', 'AMEX60DD033437', 'AMEX60DD037141', 'AMEX60DD000670', 'AMEX60DD052441', 'AMEX60DD055540', 'AMEX60DD042028']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type MCG_prox with highest fraction of prevalence: ['AMEX60DD022047', 'AMEX60DD044042', 'AMEX60DD001963', 'AMEX60DD009334', 'AMEX60DD033799', 'AMEX60DDU001033895', 'AMEX60DD037920', 'AMEX60DD027709', 'AMEX60DD029458', 'AMEX60DD031740', 'AMEX60DD037922', 'AMEX60DD015830', 'AMEX60DD055359', 'AMEX60DD018914', 'AMEX60DD033101', 'AMEX60DD018338', 'AMEX60DD025098', 'AMEX60DDU001005617', 'AMEX60DD018191', 'AMEX60DD052063']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:05<00:00, 167.22it/s]
|-----> 20 ligands for cell type nptxEX_prox with highest fraction of prevalence: ['AMEX60DD042075', 'AMEX60DD003767', 'AMEX60DD006711', 'AMEX60DD026682', 'AMEX60DD018576', 'AMEX60DD031350', 'AMEX60DD049490', 'AMEX60DD000670', 'AMEX60DD024179', 'AMEX60DD001392', 'AMEX60DD020701', 'AMEX60DDU001007321', 'AMEX60DD048295', 'AMEX60DD006619', 'AMEX60DD049338', 'AMEX60DD013396', 'AMEX60DD039130', 'AMEX60DDU001002333', 'AMEX60DDU001005418', 'AMEX60DD048309']. Testing interactions involving these genes.
/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:183: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

/mnt/c/Users/danie/spateo_env_test/lib/python3.8/site-packages/spateo/tools/cci_two_cluster.py:207: ImplicitModificationWarning:

Trying to modify attribute `.var` of view, initializing view as actual.

|-----> 20 receptors for cell type WSN_prox with highest fraction of prevalence: ['AMEX60DD018528', 'AMEX60DD020537', 'AMEX60DD041858', 'AMEX60DD051542', 'AMEX60DD043161', 'AMEX60DD000016', 'AMEX60DD014152', 'AMEX60DDU001007023', 'AMEX60DD051881', 'AMEX60DD055551', 'AMEX60DD055467', 'AMEX60DD023546', 'AMEX60DD022164', 'AMEX60DD025567', 'AMEX60DD033101', 'AMEX60DD042067', 'AMEX60DD036540', 'AMEX60DDU001005617', 'AMEX60DD029326', 'AMEX60DD008017']. Testing interactions involving these genes.
100%|█████████████████████████████████████████████████████████████████| 1000/1000 [00:06<00:00, 163.05it/s]
/tmp/ipykernel_222/476618405.py:30: SettingWithCopyWarning:


A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy

[18]:
df_result
[18]:
from to human_ligand human_receptor lr_pair lr_product lr_co_exp_num lr_co_exp_ratio lr_co_exp_ratio_pvalue is_significant sr_pair
85 AMEX60DDU001032566 AMEX60DD055954 MIF CXCR4 MIF-CXCR4 0.086219 6 0.105263 0.000 True reaEGC-MCG
2154 AMEX60DD050822 AMEX60DD055305 TNC ITGAV TNC-ITGAV 0.420186 22 0.305556 0.000 True reaEGC-WSN
2321 AMEX60DD055544 AMEX60DD002665 COL18A1 GPC1 COL18A1-GPC1 0.135889 13 0.180556 0.000 True reaEGC-WSN
734 AMEX60DD050822 AMEX60DD009754 TNC ITGB3 TNC-ITGB3 0.382080 12 0.166667 0.000 True reaEGC-WSN
1565 AMEX60DD025587 AMEX60DD052063 L1CAM EPHB2 L1CAM-EPHB2 0.171647 9 0.209302 0.000 True MCG-reaEGC
1887 AMEX60DD052070 AMEX60DD054061 C1QB C1QBP C1QB-C1QBP 0.265193 8 0.186047 0.000 True MCG-reaEGC
753 AMEX60DD044302 AMEX60DD024484 EGF AXL EGF-AXL 0.144871 7 0.162791 0.000 True MCG-reaEGC
575 AMEX60DD012285 AMEX60DD033101 THBS1 SDC1 THBS1-SDC1 0.247186 7 0.225806 0.000 True MCG-WSN
1388 AMEX60DD007022 AMEX60DD033101 PTN SDC1 PTN-SDC1 0.168189 7 0.225806 0.000 True MCG-WSN
2306 AMEX60DD007066 AMEX60DD045536 TIMP3 KDR TIMP3-KDR 0.516178 7 0.225806 0.000 True MCG-WSN
2319 AMEX60DD047408 AMEX60DD002665 APP GPC1 APP-GPC1 1.547716 18 0.692308 0.000 True MCG-nptxEX
913 AMEX60DD047408 AMEX60DD043107 APP VLDLR APP-VLDLR 0.890461 11 0.423077 0.000 True MCG-nptxEX
960 AMEX60DD035913 AMEX60DD034378 CALM3 ESR1 CALM3-ESR1 0.503630 7 0.269231 0.000 True MCG-nptxEX
598 AMEX60DD004094 AMEX60DD024484 ADAM10 AXL ADAM10-AXL 0.267034 17 0.253731 0.000 True WSN-reaEGC
2383 AMEX60DD025587 AMEX60DD029929 L1CAM ERBB3 L1CAM-ERBB3 0.203252 15 0.223881 0.000 True WSN-reaEGC
582 AMEX60DD012285 AMEX60DD055675 THBS1 ITGA6 THBS1-ITGA6 0.219074 13 0.194030 0.000 True WSN-reaEGC
1882 AMEX60DD047873 AMEX60DD022278 COL4A1 ITGB8 COL4A1-ITGB8 0.285102 9 0.333333 0.000 True WSN-MCG
1204 AMEX60DD031350 AMEX60DD029261 NPTX1 NPTXR NPTX1-NPTXR 1.434149 32 0.415584 0.000 True WSN-nptxEX
732 AMEX60DD050822 AMEX60DD033101 TNC SDC1 TNC-SDC1 0.132684 10 0.129870 0.000 True WSN-nptxEX
1445 AMEX60DD025368 AMEX60DD022256 CALM1 CALCR CALM1-CALCR 0.282748 9 0.116883 0.006 True WSN-nptxEX
1204 AMEX60DD031350 AMEX60DD029261 NPTX1 NPTXR NPTX1-NPTXR 1.484038 13 0.541667 0.000 True nptxEX-MCG
1974 AMEX60DD035913 AMEX60DD029458 CALM3 PDE1B CALM3-PDE1B 1.183570 8 0.333333 0.000 True nptxEX-MCG
1973 AMEX60DD025368 AMEX60DD029458 CALM1 PDE1B CALM1-PDE1B 0.658097 8 0.333333 0.000 True nptxEX-MCG
1204 AMEX60DD031350 AMEX60DD029261 NPTX1 NPTXR NPTX1-NPTXR 2.132398 46 0.605263 0.000 True nptxEX-WSN
1668 AMEX60DD038767 AMEX60DD025567 SEMA5A PLXNB3 SEMA5A-PLXNB3 0.044252 6 0.078947 0.000 True nptxEX-WSN
[ ]:
